Surge Protection Devices

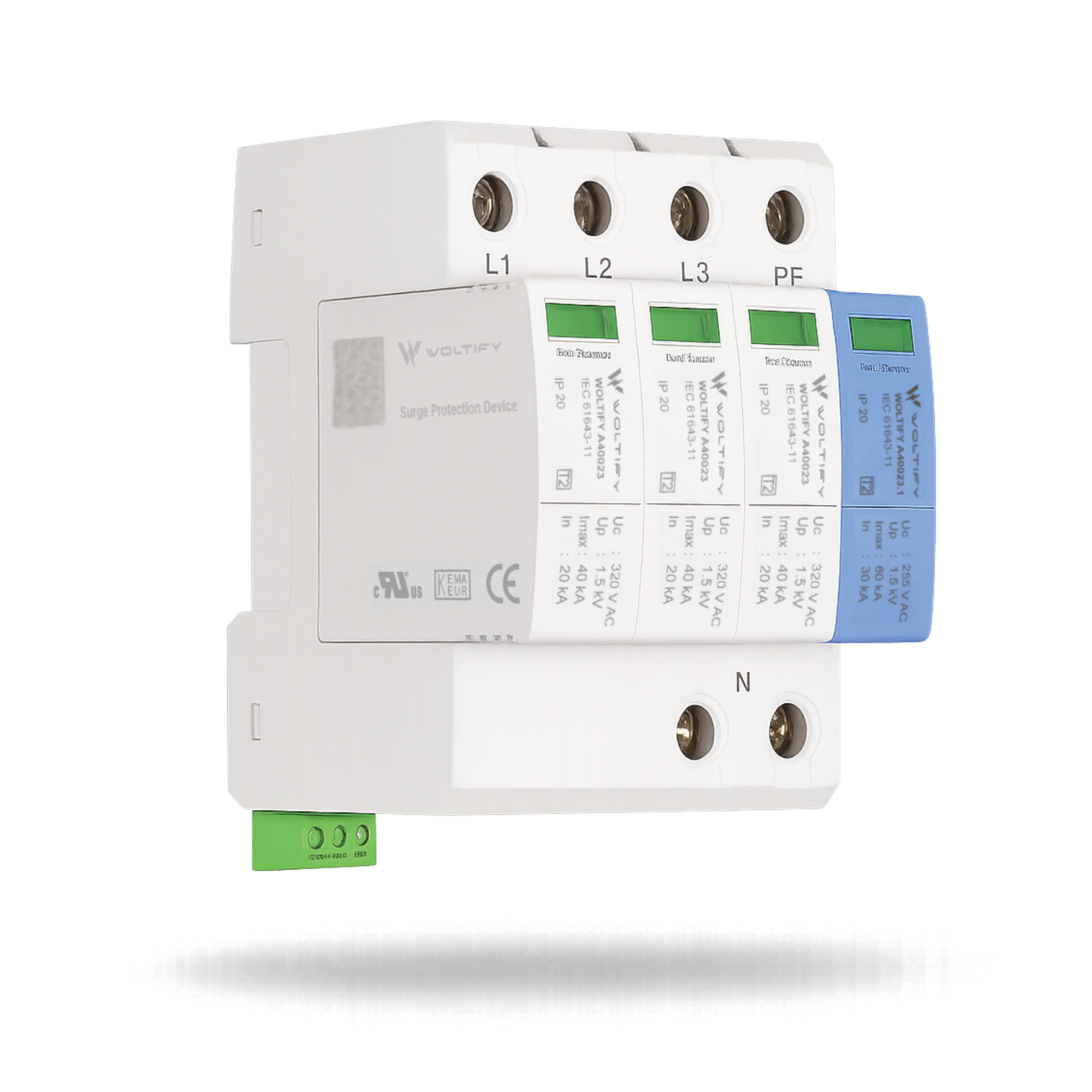

WAE AXN Series

High-performance combined lightning and surge protection

Combined Type 1+2 protection
High lightning impulse handling
Modular pluggable design
Visual fault indication
Download DatasheetRequest Quote
RoHS
TÜV
KEMA
CE

Technical Specifications

TypeType 1+2 SPD
Nominal Voltage230 / 400 V
Iimp (10/350)25 kA
Imax (8/20)100 kA
In (8/20)25 kA
Protection Level (Up)≤ 1.5 kV
Response Time≤ 25 ns
MountingDIN Rail

Downloads

DatasheetDownload →
